Features & Benefits
By constantly introducing design enhancements that extend product life and simplify installation and replacement, MOOG has earned its reputation as the chassis industry's Problem Solver.
FEATURES
- 100% Load tested
- Easy to install
- Provides like-new steering
- Designed to lower stresses for longer service life
- Worn or sagging coil springs can cause premature tire wear due to vehicle misalignment
SPECIFICATIONS
- Bar Diameter - Inches: 0.56
- Bar Diameter - MM: 14.30
- End 1 Type: Pigtail
- End 2 Type: Tangential
- Free Height - Inches: 15.42
- Free Height - MM: 391.70
- Installation Height (mm): 241.30
- Front Spring Outside Diameter (in): 6.520
- Front Spring Relaxed Length (mm): 391.70
- ID - Inches: 5.40
- ID - MM: 137.20
- Installation Height - Inches: 9.50
- Installation Height - MM: 241.30
- Load - lbs: 740.00

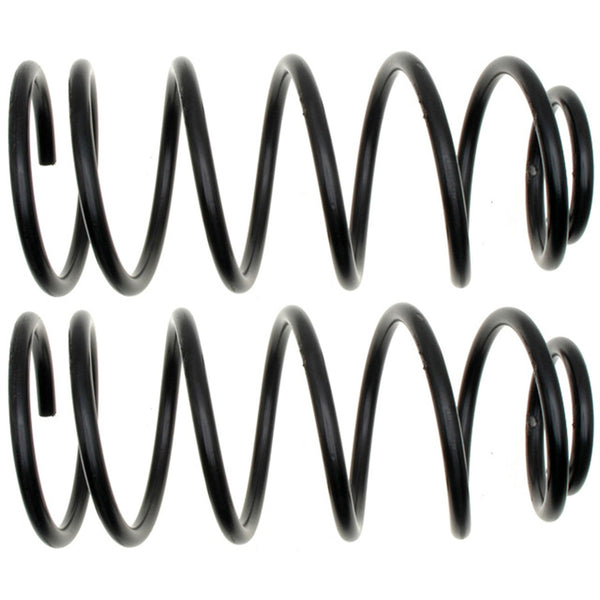

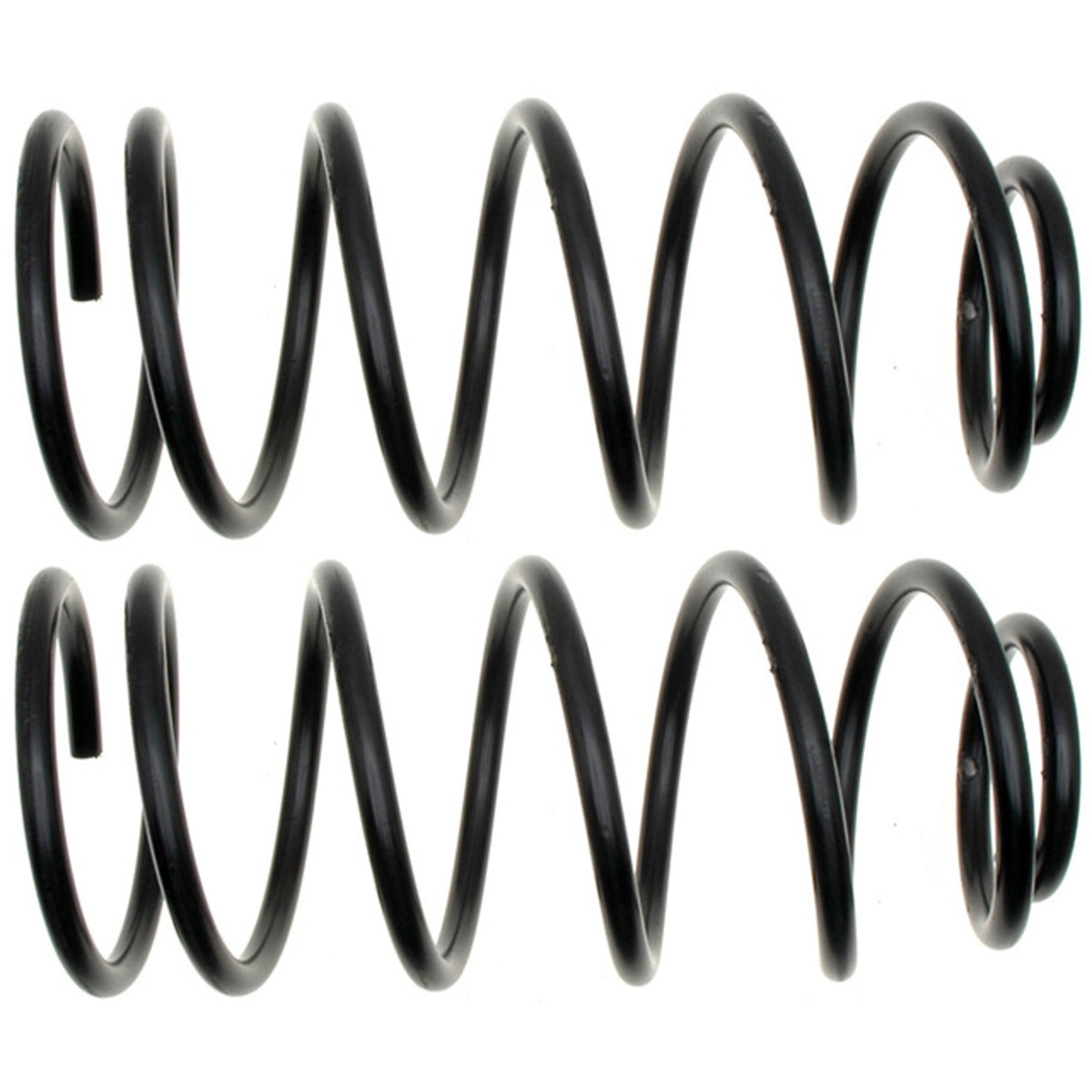

- Part Description: Coil Spring Set
- Rear Spring Compressed Length (mm): 241.30
- Rear Spring Outside Diameter (in): 6.520
- Rear Spring Relaxed Length (in): 15.42
- Spring Color: Black
- Spring Rate - lbs per inch: 125.00
- Spring Type: Variable Rate
- Bar Diameter (mm): 14.30
-
