Features & Benefits

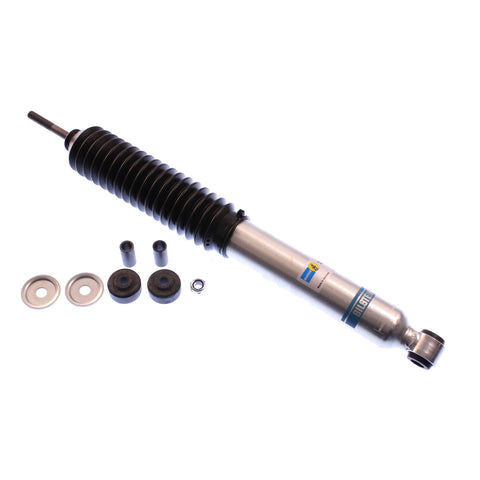

Bilstein's B8 5100 24-185684 shock for your Ford Ranger is one of the top choices for on and off-road enthusiasts looking for a performance shock to improve their vehicle's performance, especially on lifted trucks and SUVs, those who tow or love to take it off-road. Bilstein 5100 Shocks are also available for stock height trucks.
Features of the Bilstein 24-185684
Monotube Design:
Much like its predecessor the Bilstein 4600 series, the 5100 series also features a monotube design, providing consistent damping and better heat dissipation.
Zinc Plated Finish:
The Bilstein 5100 series shocks have a unique and stylish zinc-plated finish for superior corrosion resistance. Making them durable in conditions favored by Bilstein Lifted, Off-Road and Drivers who tow.
High-Flow Piston:
The 5100's larger diameter and high-flow piston design provides better control and responsiveness for your truck or SUV.
Velocity-Sensitive Valving:
This feature automatically adjusts to the road conditions, providing optimal damping whether you're driving on the highway or off-road.
Tuned Specifically for Your Lifted Vehicle:
The Bilstein 5100 shock is specifically tuned for Trucks and SUV's with lift kits, ensuring that the shocks complement the altered suspension geometry.
Benefits of the Bilstein 24-185684
Enhanced Off-Road Capability:
The 5100 series is designed for the ability to go off-road, offering better control and stability over rough roads and terrain, but still gives you a consistent smooth on road feel.
Improved Ride Comfort for Lifted, Off-Road or Towing:
These shocks provide a smooth and controlled ride, taking on bumps and vibrations effectively and gives you greater control on uneven roadways.
Durability and Longevity:
The zinc-plated finish and Bilstein's high-quality materials ensure that the shocks are resistant to corrosion and wear, offering long-lasting performance.
The Best Handling and Stability:
The high-flow piston and velocity-sensitive valving improve the vehicle's handling and stability enabling the driver to have greater control and stability.
Specifications
- Adjustable Damping: Non-Adjustable
- Body Design: Smooth Body (Non-Coilover)
- Body Diameter (ID): 46mm
- Boot Included: Black Bellows
- Collapsed Length (IN): 12.87
- Collapsed Length (MM): 327.0
- Extended Length (IN): 20.49
- Extended Length (MM): 520.5
- Finish: Zinc Plated
- Internal Design: Monotube
- Lower Mount Type: Eye 5/8in
- Reservoir: No
- Spring Seat Included: No
- Upper Mount Type: Stem
-
