Features & Benefits
Bilstein 8125 Series Shock AbsorbersSpecifications:
Collapsed Length: 23.5 Inches
Extended Length: 39.5 Inches
Collapsed Length: 569.9mm
Extended Length: 1003.3mm
Compression: 1000
Rebound: 2550
Lower Mount Type: 5/8in. heim with 1/2in. heim spacers (1.5in. width spacing)
Upper Mount Type: 5/8in. heim with 1/2in. heim spacers (1.5in. width spacing)

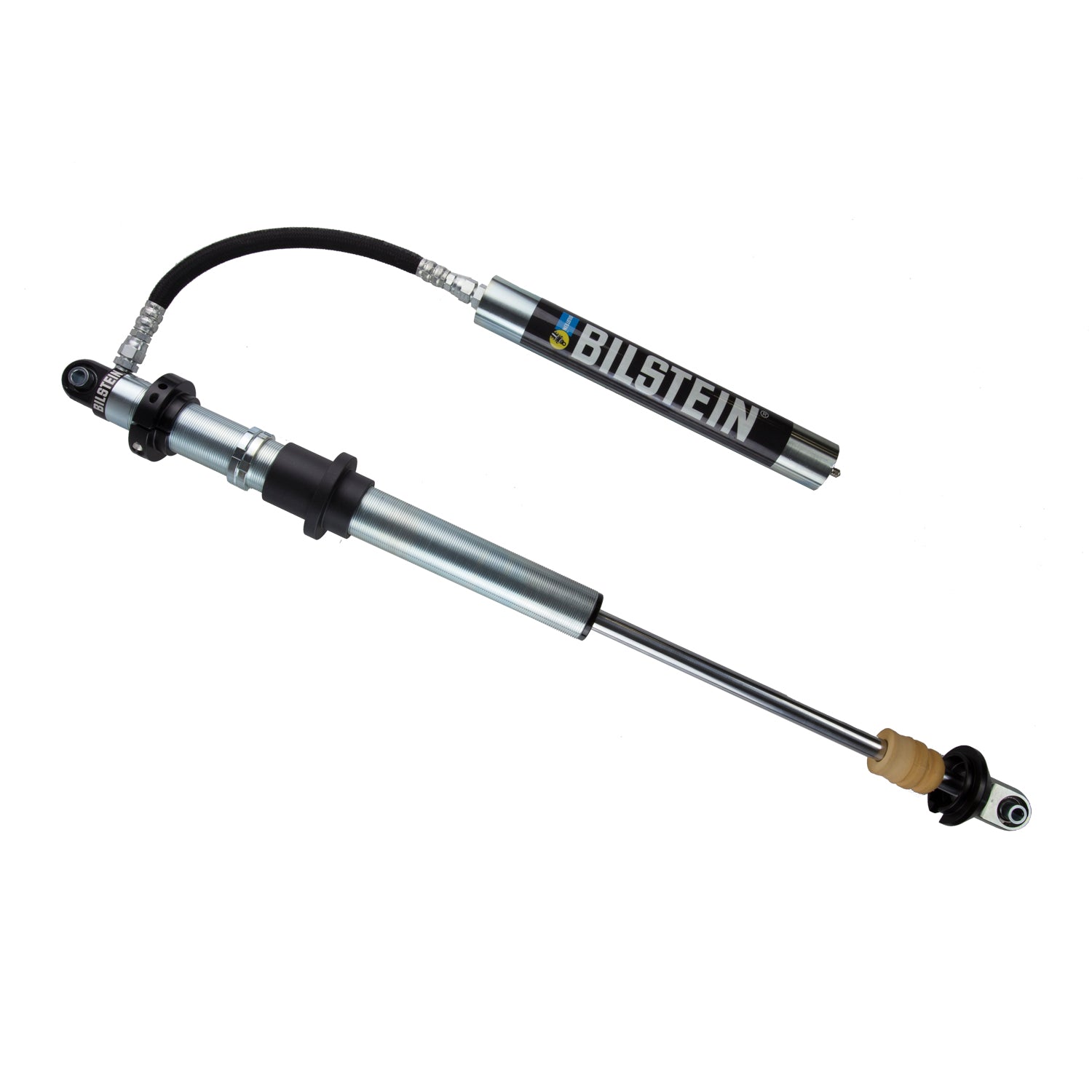

The 8125 Series from Bilstein are high performance coilover shock absorbers for the serious off-roader. The 8125 Series available in both 46mm and 60mm sizes. Specifically designed for use with dual-rate springs and available in a wide range of travel lengths, the 8125 Series are perfect for custom coilover suspension applications. The 8125 Series are available in a wide range of sizes with travel lengths ranging from 5 to 16 inches. Assembled with a competition designed, 3-stage seal pack, the 8125 Series will withstand the harshest terrain. All 8125 Series include a 22mm hard chromed, case hardened piston rod which provides exceptional tensile strength and resistance to sand blasting and rock chipping. Incorporated remote reservoir combined with a high-temp size 8 hose provides consistent fade free performance under conditions of intense heat. The zinc coated threaded body allows for quick ride height adjustments and spring changes. The 8125 Series are completely owner rebuildable with replacement parts available from BILSTEIN. All components are machined to precise tolerances and made in the USA to insure a high quality product.
Collapsed Length (IN) - 23.5
Extended Length (IN) - 39.5
Stroke (IN) - 16
Lower Mount Type - 5/8in. heim with 1/2in. heim spacers (1.5in. width spacing)
Upper Mount Type - 5/8in. heim with 1/2in. heim spacers (1.5in. width spacing)
Boot Included - No
Finish - Zinc Plated
Internal Design - Monotube
Body Design - 46mm ID Threaded Body Screw Top (Coilover) -
