Features & Benefits

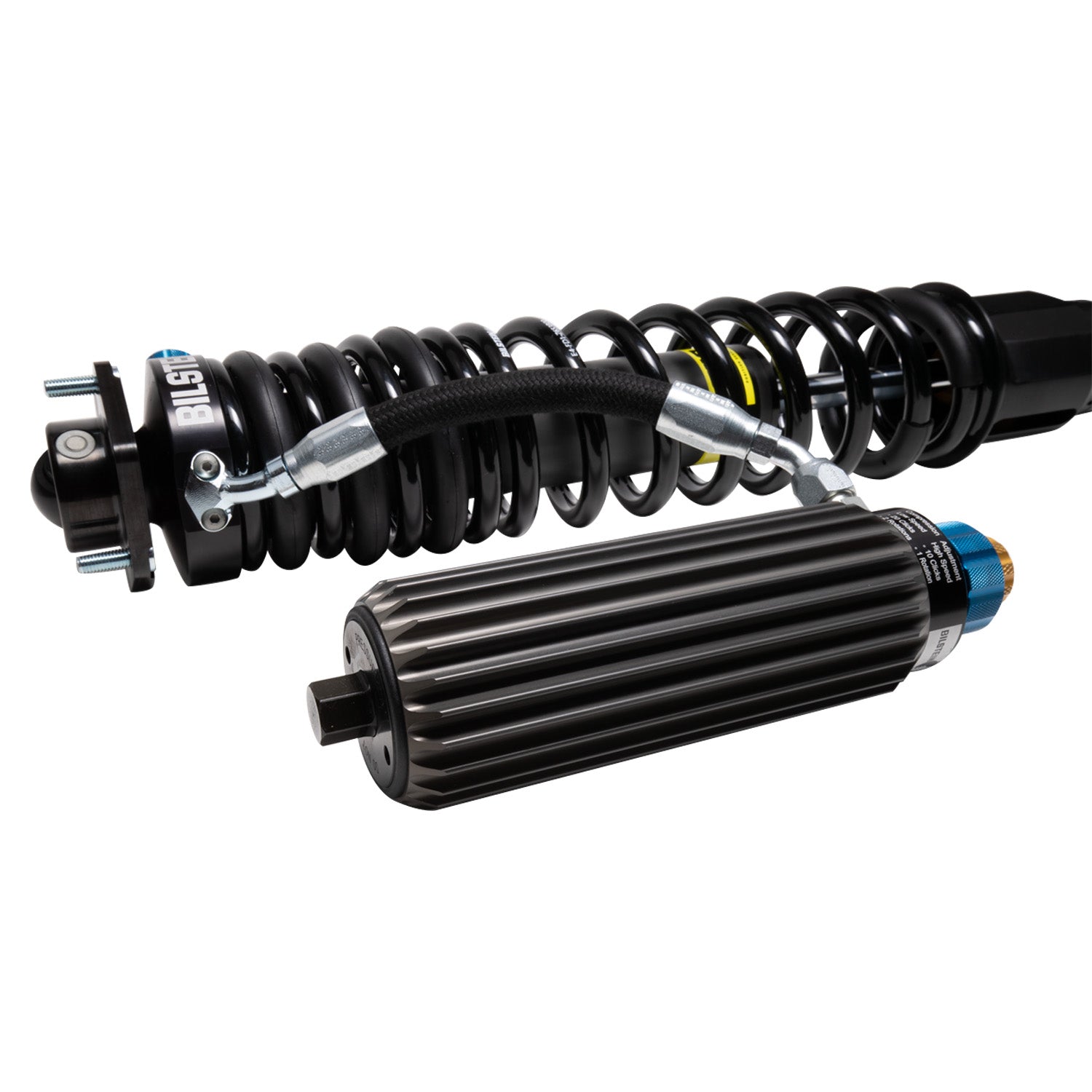

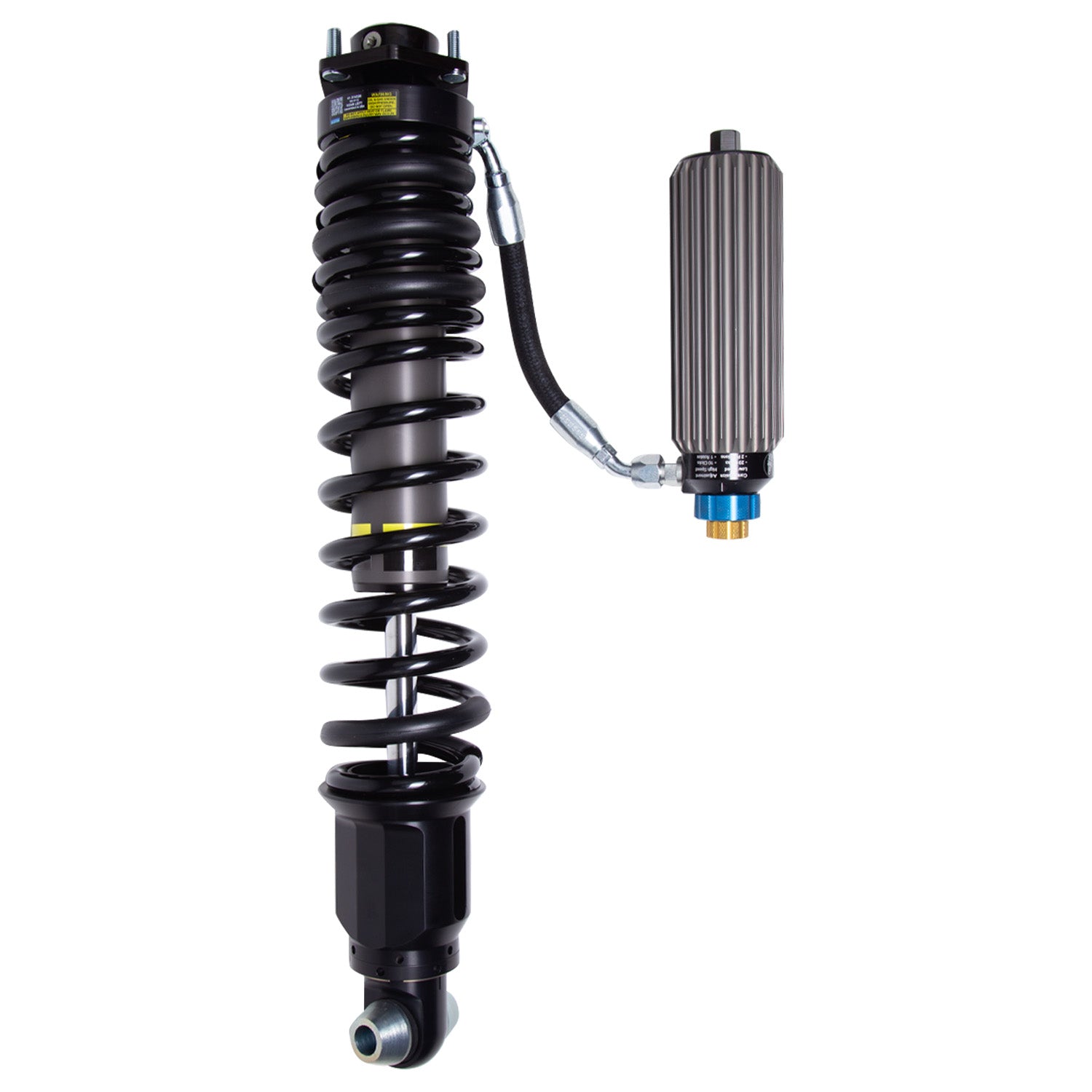

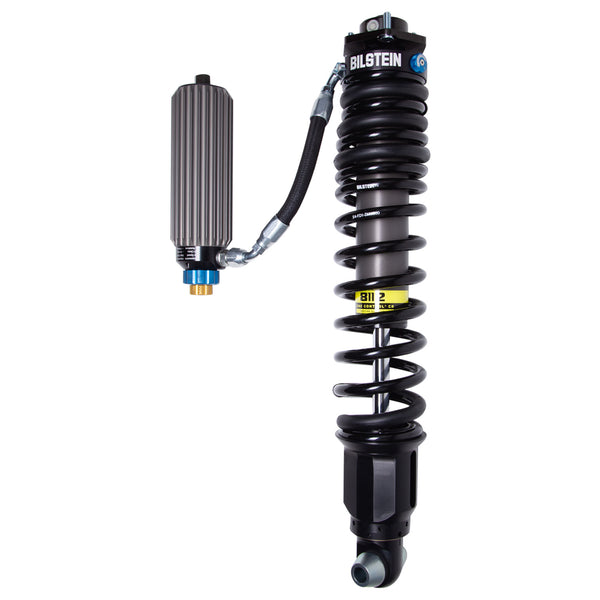

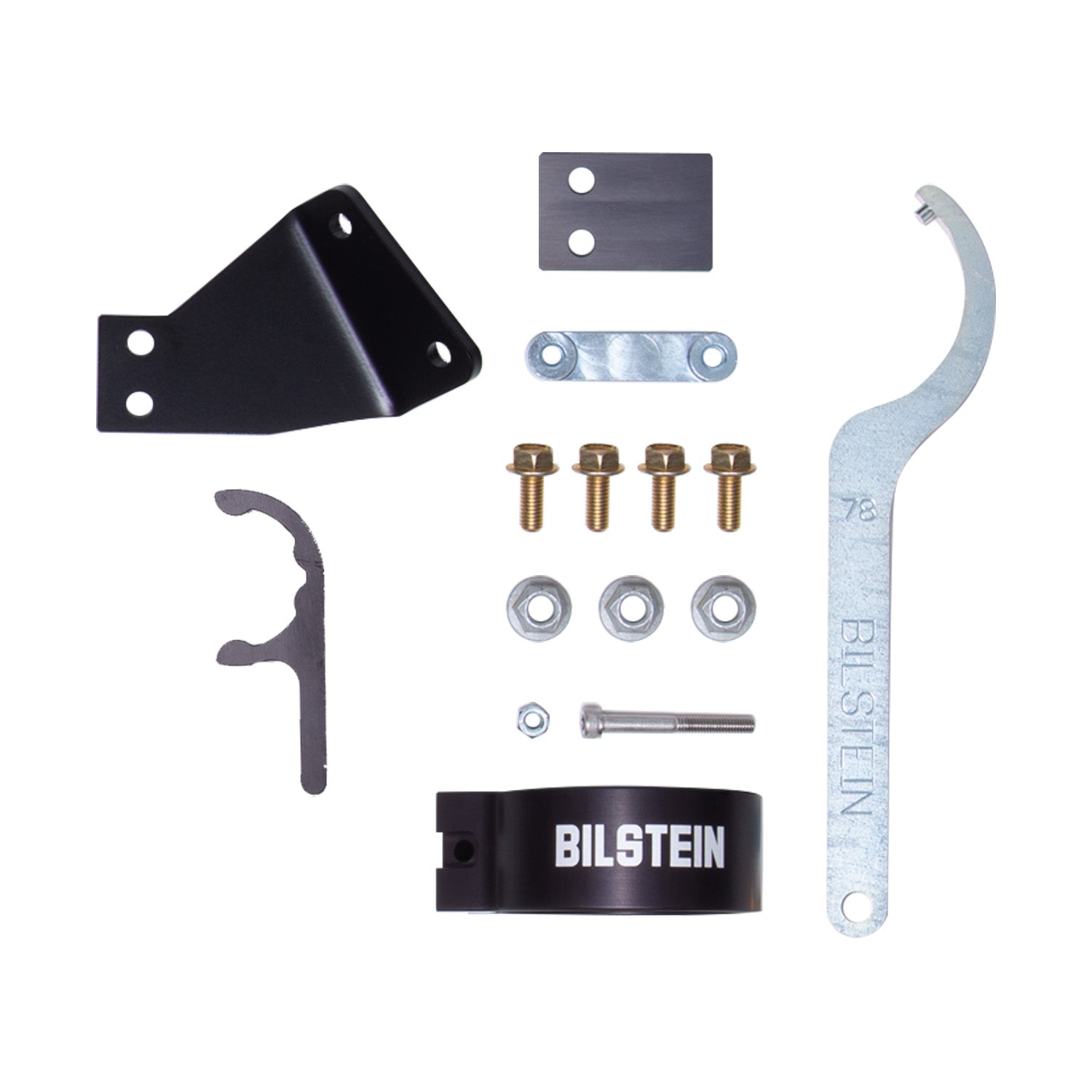

Bilstein B8 8112 (ZoneControl CR DSA+) is a direct fit, 3-way adjustable, 60mm, position sensitive coilover shock designed for light trucks and SUVs. ZoneControl CR DSA+ is a revolutionary technology delivering position sensitive damping plus user Dual Speed Adjustability. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop). The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3 (depending on application). It is supplied with a remote reservoir for increased cooling along with an accompanied, bolt-on anodized reservoir chassis mount. Bilstein B8 8112 (ZoneControl CR DSA+) position sensitive Dual Speed Adjustable coilovers offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs with the ability to quickly adjust the shock to tackle any terrain.
Specifications
- Adjustable Damping: Click Adjusters for High and Low Speed Compression plus internal Bump Stop (JCO)
- Body Design: Smooth Body (Coilover)
- Body Diameter (ID): 60mm
- Body Material: Aluminum
- Boot Included: No
- Collapsed Length (IN): 18.40
- Collapsed Length (MM): 467.1
- Extended Length (IN): 26.60
- Extended Length (MM): 674.6
- Finish: Dampers: EVO Grey/Springs: Black
- Internal Design: Monotube
- Lower Mount Type: Eye 25.4mm with Heim Spacers
- Prop 65 - Short Label: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
- Reservoir: Yes - Finned Aluminum
- Spring Seat Included: Yes
- Upper Mount Type: Special
-
Fitments
VehiclePositionNotesYearFord Bronco Badlands 4WDRear LeftProvides 1.6-2.2" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch PackageFor Models with 4 doors.Ford Bronco Badlands 4WDRear LeftProvides 2.1-2.9" Rear Lift Without Sasquatch Package; 1.0-1.7" Rear Lift With Sasquatch PackageFor Models with 2 doors.Ford Bronco Badlands AWDRear LeftProvides 1.6-2.2" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch PackageFor Models with 4 doors.Ford Bronco Badlands AWDRear LeftProvides 2.1-2.9" Rear Lift Without Sasquatch Package; 1.0-1.7" Rear Lift With Sasquatch PackageFor Models with 2 doors.Ford Bronco Base 4WDRear LeftProvides 2.7-3.3" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch PackageFor Models with 4 doors.Ford Bronco Base 4WDRear LeftProvides 2.8" Rear Lift Without Sasquatch Package; 1.0-1.7" Rear Lift With Sasquatch PackageFor Models with 2 doors.Ford Bronco Big Bend 4WDRear LeftProvides 2.7-3.3" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch PackageFor Models with 4 doors.Ford Bronco Big Bend 4WDRear LeftProvides 2.8" Rear Lift Without Sasquatch Package; 1.0-1.7" Rear Lift With Sasquatch PackageFor Models with 2 doors.Ford Bronco Black Diamond 4WDRear LeftProvides 2.7-3.3" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch PackageFor Models with 4 doors.Ford Bronco Black Diamond 4WDRear LeftProvides 2.8" Rear Lift Without Sasquatch Package; 1.0-1.7" Rear Lift With Sasquatch PackageFor Models with 2 doors.Ford Bronco Everglades 4WDRear LeftProvides 0.5-1.1" Rear LiftFor Models with 4 doors.Ford Bronco First Edition 4WDRear LeftProvides 0.5-1.1" Rear LiftFor Models with 4 doors.Ford Bronco First Edition 4WDRear LeftProvides 1.0-1.7" Rear LiftFor Models with 2 doors.Ford Bronco Heritage Edition 4WDRear LeftProvides 0.5-1.1" Rear LiftFor Models with 4 doors.Ford Bronco Heritage Edition 4WDRear LeftProvides 1.0-1.7" Rear LiftFor Models with 2 doors.Ford Bronco Heritage Limited Edition 4WDRear LeftProvides 0.5-1.1" Rear LiftFor Models with 4 doors.Ford Bronco Heritage Limited Edition 4WDRear LeftProvides 1.0-1.7" Rear LiftFor Models with 2 doors.Ford Bronco Outer Banks 4WDRear LeftProvides 2.7-3.3" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch PackageFor Models with 4 doors.Ford Bronco Outer Banks 4WDRear LeftProvides 2.8" Rear Lift Without Sasquatch Package; 1.0-1.7" Rear Lift With Sasquatch PackageFor Models with 2 doors.Ford Bronco Wildtrak 4WDRear LeftProvides 0.5-1.1" Rear LiftFor Models with 4 doors.Ford Bronco Wildtrak 4WDRear LeftProvides 1.0-1.7" Rear LiftFor Models with 2 doors. -
