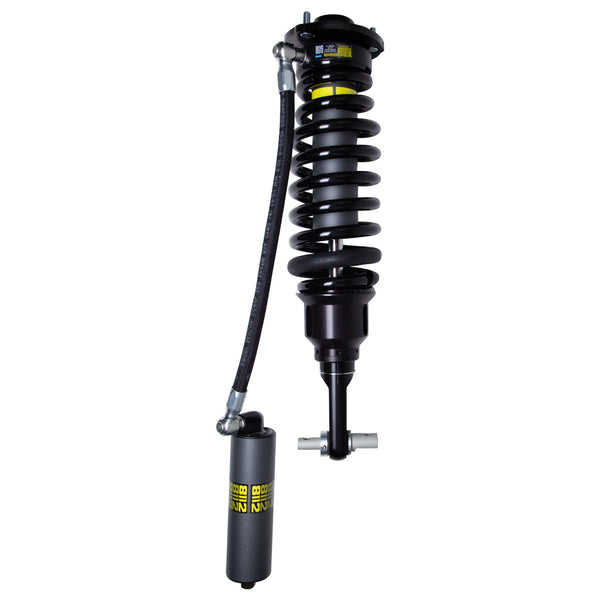

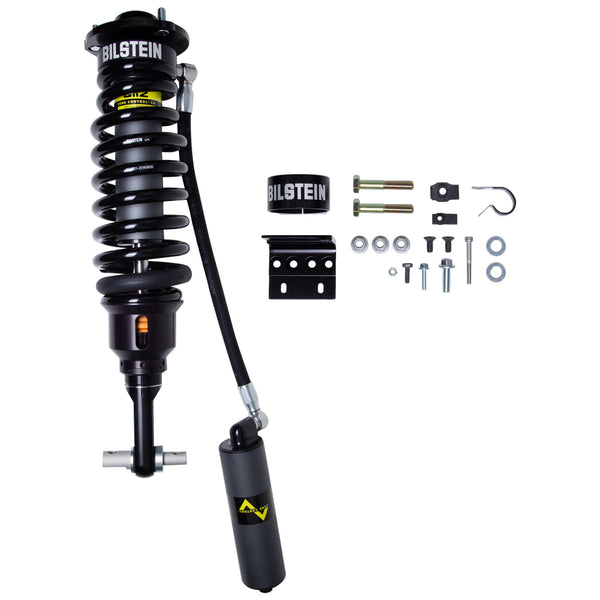

Bilstein 41-326725 Front Right B8 8112 (ZoneControl CR) Shock and Coil Spring Assembly Ford F-150

$1,113.00 USD

Nationwide Backorder (Pre Order to Reserve)
This Item is not available in the USA. You can pre-order and you will be notified when it is available. We will not charge your Credit Card until the items ordered are shipped. We will take an authorization when the order is processed, which may show as a Pending charge for 7 days. You will not lose your place in line. Thank You from Shockwarehouse.
FREE shipping over $95

SKU: 41-326725

Features & Benefits
Bilstein B8 8112 (ZoneControl) CR suspension kits are a direct fit, position sensitive coilover designed for light trucks and SUVs. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8 (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.
Specifications
- Adjustable Damping: Non-Adjustable
- Body Design: Smooth Body (Coilover)
- Body Diameter (ID): 60mm
- Body Material: Steel
- Boot Included: No
- Collapsed Length (IN): 18.45
- Collapsed Length (MM): 468.7
- Extended Length (IN): 23.22
- Extended Length (MM): 589.8
- Finish: Dampers: EVO Grey/Springs: Black
- Internal Design: Monotube
- Lower Mount Type: Crossbar
- Prop 65 - Short Label: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
- Reservoir: Yes
- Spring Seat Included: Yes
- Upper Mount Type: Special
Fitments

Vehicle
Position
Notes
Year
Ford F-150 King Ranch 4WD
Front Right
Provides 1.5-2.3" Front Lift
Ford F-150 King Ranch 4WD
Front Right
Provides 1.5-2.2" Front Lift
Ford F-150 King Ranch 4WD
Front Right
Provides 1.6-2.7" Front Lift
Without Continuously Controlled Damping
Aftermarket Upper Control Arms required
Ford F-150 King Ranch 4WD
Front Right
Provides 1.6-2.5" Front Lift
Without Continuously Controlled Damping
Aftermarket Upper Control Arms required
Ford F-150 King Ranch 4WD
Front Right
Provides 1.6-2.7" Front Lift
Without Continuously Controlled Damping
PowerBoost Hybrid
Aftermarket Upper Control Arms required
Ford F-150 King Ranch 4WD
Front Right
Provides 1.6-2.5" Front Lift
Without Continuously Controlled Damping
EcoBoost Engine
Aftermarket Upper Control Arms required
Ford F-150 King Ranch 4WD Crew Cab Pickup
Front Right
Provides 1.6-2.5" Front Lift
Without Continuously Controlled Damping
Aftermarket Upper Control Arms required
Ford F-150 Lariat 4WD
Front Right
Provides 1.5-2.3" Front Lift
Ford F-150 Lariat 4WD
Front Right
Provides 1.5-2.2" Front Lift
Ford F-150 Lariat 4WD
Front Right
Provides 1.6-2.7" Front Lift
Without Continuously Controlled Damping
Aftermarket Upper Control Arms required
Ford F-150 Lariat 4WD
Front Right
Provides 1.6-2.5" Front Lift
Without Continuously Controlled Damping
Aftermarket Upper Control Arms required
Ford F-150 Lariat 4WD
Front Right
Provides 1.8-2.5" Front Lift
Without Continuously Controlled Damping
Aftermarket Upper Control Arms required
Ford F-150 Lariat 4WD
Front Right
Provides 1.6-2.7" Front Lift
Without Continuously Controlled Damping
PowerBoost Hybrid
Aftermarket Upper Control Arms required
Ford F-150 Lariat 4WD
Front Right
Provides 1.6-2.5" Front Lift
Without Continuously Controlled Damping
EcoBoost Engine
Aftermarket Upper Control Arms required
Ford F-150 Lariat 4WD Crew Cab Pickup
Front Right
Provides 1.6-2.5" Front Lift
Without Continuously Controlled Damping
Aftermarket Upper Control Arms required
Ford F-150 Lariat 4WD Extended Cab Pickup
Front Right
Provides 1.6-2.5" Front Lift
Without Continuously Controlled Damping
Aftermarket Upper Control Arms required
Ford F-150 Limited 4WD
Front Right
Provides 1.5-2.3" Front Lift
Ford F-150 Limited 4WD
Front Right
Provides 1.6-2.7" Front Lift
Without Continuously Controlled Damping
Aftermarket Upper Control Arms required
Ford F-150 Limited 4WD
Front Right
Provides 1.6-2.5" Front Lift
Without Continuously Controlled Damping
Aftermarket Upper Control Arms required
Ford F-150 Platinum 4WD
Front Right
Provides 1.5-2.3" Front Lift
Ford F-150 Platinum 4WD
Front Right
Provides 1.5-2.2" Front Lift
Ford F-150 Platinum 4WD
Front Right
Provides 1.6-2.7" Front Lift
Without Continuously Controlled Damping
Aftermarket Upper Control Arms required
Ford F-150 Platinum 4WD
Front Right
Provides 1.6-2.5" Front Lift
Without Continuously Controlled Damping
Aftermarket Upper Control Arms required
Ford F-150 Platinum 4WD
Front Right
Provides 1.6-2.7" Front Lift
Without Continuously Controlled Damping
PowerBoost Hybrid
Aftermarket Upper Control Arms required
Ford F-150 Platinum 4WD
Front Right
Provides 1.6-2.5" Front Lift
Without Continuously Controlled Damping
EcoBoost Engine
Aftermarket Upper Control Arms required
Ford F-150 Platinum 4WD Crew Cab Pickup
Front Right
Provides 1.6-2.5" Front Lift
Without Continuously Controlled Damping
Aftermarket Upper Control Arms required
Ford F-150 STX 4WD Crew Cab Pickup
Front Right
Provides 1.6-2.5" Front Lift
Without Continuously Controlled Damping
Aftermarket Upper Control Arms required
Ford F-150 STX 4WD Crew Cab Pickup
Front Right
Provides 1.8-2.5" Front Lift
Without Continuously Controlled Damping
Aftermarket Upper Control Arms required
Ford F-150 STX 4WD Extended Cab Pickup
Front Right
Provides 1.6-2.5" Front Lift
Without Continuously Controlled Damping
Aftermarket Upper Control Arms required
Ford F-150 STX 4WD Extended Cab Pickup
Front Right
Provides 1.8-2.5" Front Lift
Without Continuously Controlled Damping
Aftermarket Upper Control Arms required
Ford F-150 Tremor 4WD
Front Right
Provides 0.7-2.1" Front Lift
Without Continuously Controlled Damping
Ford F-150 Tremor 4WD
Front Right
Provides 0.7-2.1" Front Lift
Without Continuously Controlled Damping
EcoBoost Engine
Ford F-150 XL 4WD Crew Cab Pickup
Front Right
Provides 1.5-2.3" Front Lift
Ford F-150 XL 4WD Crew Cab Pickup
Front Right
Provides 1.5-2.2" Front Lift
Ford F-150 XL 4WD Crew Cab Pickup
Front Right
Provides 1.6-2.7" Front Lift
Without Continuously Controlled Damping
Aftermarket Upper Control Arms required
Ford F-150 XL 4WD Crew Cab Pickup
Front Right
Provides 1.6-2.5" Front Lift
Without Continuously Controlled Damping
Aftermarket Upper Control Arms required
Ford F-150 XL 4WD Crew Cab Pickup
Front Right
Provides 1.8-2.5" Front Lift
Without Continuously Controlled Damping
Aftermarket Upper Control Arms required
Ford F-150 XL 4WD Crew Cab Pickup
Front Right
Provides 1.6-2.5" Front Lift
Without Continuously Controlled Damping
EcoBoost Engine
Aftermarket Upper Control Arms required
Ford F-150 XL 4WD Extended Cab Pickup
Front Right
Provides 1.5-2.3" Front Lift
Ford F-150 XL 4WD Extended Cab Pickup
Front Right
Provides 1.5-2.2" Front Lift
Ford F-150 XL 4WD Extended Cab Pickup
Front Right
Provides 1.6-2.7" Front Lift
Without Continuously Controlled Damping
Aftermarket Upper Control Arms required
Ford F-150 XL 4WD Extended Cab Pickup
Front Right
Provides 1.6-2.5" Front Lift
Without Continuously Controlled Damping
Aftermarket Upper Control Arms required
Ford F-150 XL 4WD Extended Cab Pickup
Front Right
Provides 1.8-2.5" Front Lift
Without Continuously Controlled Damping
Aftermarket Upper Control Arms required
Ford F-150 XL 4WD Extended Cab Pickup
Front Right
Provides 1.6-2.5" Front Lift
Without Continuously Controlled Damping
EcoBoost Engine
Aftermarket Upper Control Arms required
Ford F-150 XLT 4WD Crew Cab Pickup
Front Right
Provides 1.5-2.3" Front Lift
Ford F-150 XLT 4WD Crew Cab Pickup
Front Right
Provides 1.5-2.2" Front Lift
Ford F-150 XLT 4WD Crew Cab Pickup
Front Right
Provides 1.6-2.7" Front Lift
Without Continuously Controlled Damping
Aftermarket Upper Control Arms required
Ford F-150 XLT 4WD Crew Cab Pickup
Front Right
Provides 1.6-2.5" Front Lift
Without Continuously Controlled Damping
Aftermarket Upper Control Arms required
Ford F-150 XLT 4WD Crew Cab Pickup
Front Right
Provides 1.8-2.5" Front Lift
Without Continuously Controlled Damping
Aftermarket Upper Control Arms required
Ford F-150 XLT 4WD Crew Cab Pickup
Front Right
Provides 1.6-2.7" Front Lift
Without Continuously Controlled Damping
PowerBoost Hybrid
Aftermarket Upper Control Arms required
Ford F-150 XLT 4WD Crew Cab Pickup
Front Right
Provides 1.6-2.5" Front Lift
Without Continuously Controlled Damping
EcoBoost Engine
Aftermarket Upper Control Arms required
Ford F-150 XLT 4WD Extended Cab Pickup
Front Right
Provides 1.5-2.3" Front Lift
Ford F-150 XLT 4WD Extended Cab Pickup
Front Right
Provides 1.5-2.2" Front Lift
Ford F-150 XLT 4WD Extended Cab Pickup
Front Right
Provides 1.6-2.7" Front Lift
Without Continuously Controlled Damping
Aftermarket Upper Control Arms required
Ford F-150 XLT 4WD Extended Cab Pickup
Front Right
Provides 1.6-2.5" Front Lift
Without Continuously Controlled Damping
Aftermarket Upper Control Arms required
Ford F-150 XLT 4WD Extended Cab Pickup
Front Right
Provides 1.8-2.5" Front Lift
Without Continuously Controlled Damping
Aftermarket Upper Control Arms required
Ford F-150 XLT 4WD Extended Cab Pickup
Front Right
Provides 1.6-2.7" Front Lift
Without Continuously Controlled Damping
PowerBoost Hybrid
Aftermarket Upper Control Arms required
Ford F-150 XLT 4WD Extended Cab Pickup
Front Right
Provides 1.6-2.5" Front Lift
Without Continuously Controlled Damping
EcoBoost Engine
Aftermarket Upper Control Arms required
