Features & Benefits

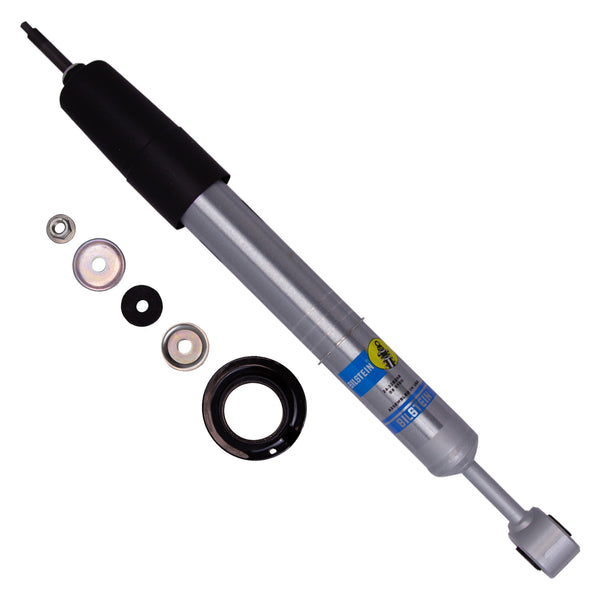

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
This package comes with
- 2 - 24-328258 Bilstein Front B8 5100 (Ride Height Adjustable) Shocks
- 2 - 33-313146 Bilstein Rear B8 5100 Shocks
Front Shock Specs
- Collapsed Length (IN) - 17.50
- Extended Length (IN) - 22.31
- Upper Mount Type - Stem
- Lower Mount Type - Eye 14.2mm
Rear Shock Specs
- Collapsed Length (IN) - 14.91
- Extended Length (IN) - 23.03
- Upper Mount Type - Stem
- Lower Mount Type - Eye 19.3mm
-
