Features & Benefits

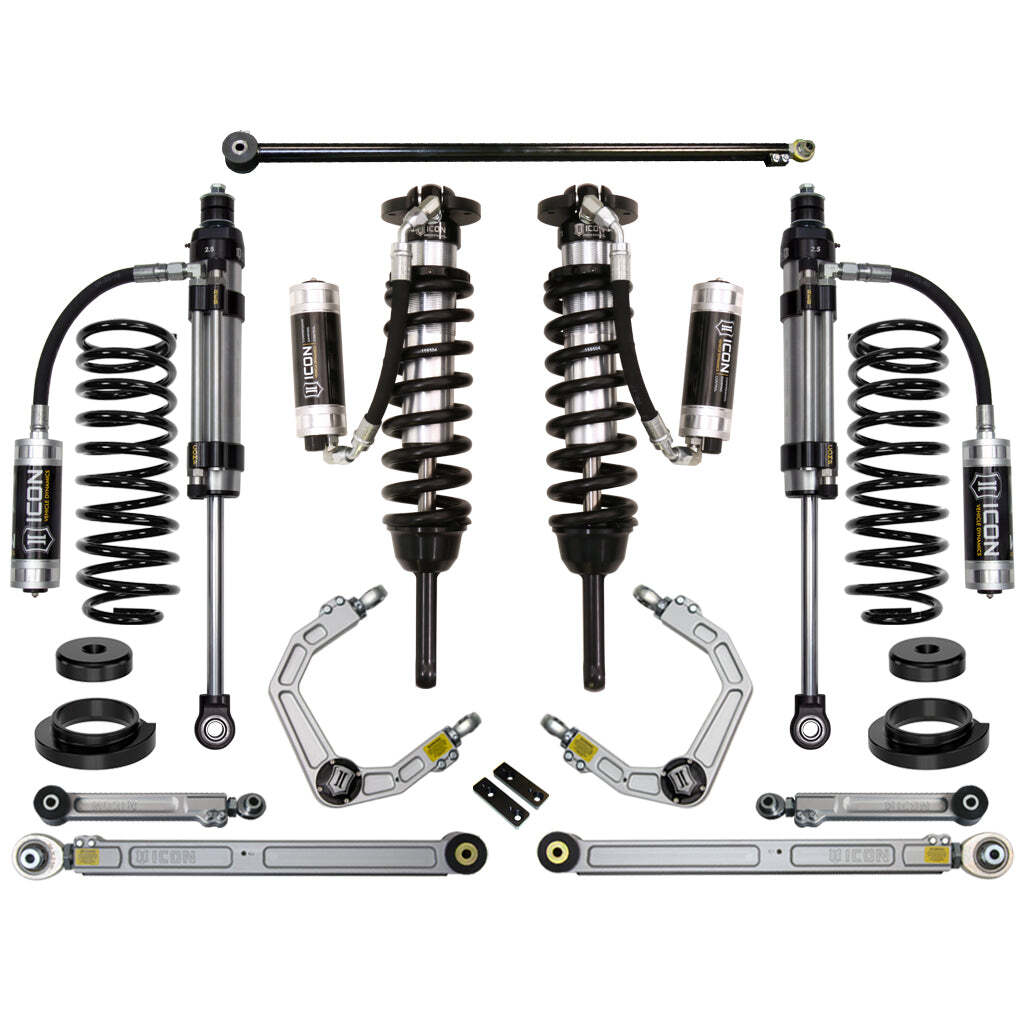

2003-2009 LEXUS GX470 0-3.5" LIFT STAGE 8 SUSPENSION SYSTEM WITH BILLET UPPER CONTROL ARMS
- Increased wheel travel and ride quality over stock
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- CDC Valve technology allows for quick and easy compression damping adjustment without the need for tools
- Adjustable coilovers with remote reservoirs provide 0-3.5" of lift height
- ICON upper control arms allow for additional wheel travel (when paired with extended travel coilovers) while improving suspension geometry for predictable handling
- Patented Delta Joint (U.S. Pat. 10,731,700) combines the durability and weather resistance of a ball joint with the performance characteristics of a uniball
- Billet rear upper and lower links offer increased strength, improved geometry, and on-vehicle pinion angle adjustment
- Omega Series two-tube bypass rear shocks allow for compression and rebound damping adjustment without need for tools
- 6061 aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock body with 7/8" shaft
- FK Rod End bearings for extended longevity and minimal deflection
- 2.5 Series rear remote reservoir shocks with 7/8" shafts
- Included rear coil conversion kit eliminates factory air system
- Adjustable rear track bar ensures KDSS compatibility and proper rear axle alignment
- Bolt-on system means no cutting or welding necessary for install
- Factory Wheels & Tires Fitment: Yes
- APPLICATION NOTE #35: REMOTE RESERVOIR MOUNTING BRACKETS MAY INTERFERE WITH AFTERMARKET BUMPER MOUNTS / WINDSHIELD WASHER BOTTLES.
- APPLICATION NOTE #46: SUSPENSION SYSTEM COMPATIBLE WITH KDSS. FRONT SWAY BAR RELOCATION BRACKETS NOT USED FOR KDSS EQUIPPED VEHICLES. CERTAIN YEARS REQUIRE TRIMMING FOR FRONT RESERVOIR BRACKET FITMENT.
- APPLICATION NOTE #47: 700LB COIL SPRING AVAILABLE FOR HEAVIER EQUIPPED VEHICLES.
- APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
- APPLICATION NOTE #102: KDSS EQUIPPED VEHICLES REQUIRE REAR TRACK BAR 54200.
- Ships in multiple boxes
-
