Features & Benefits

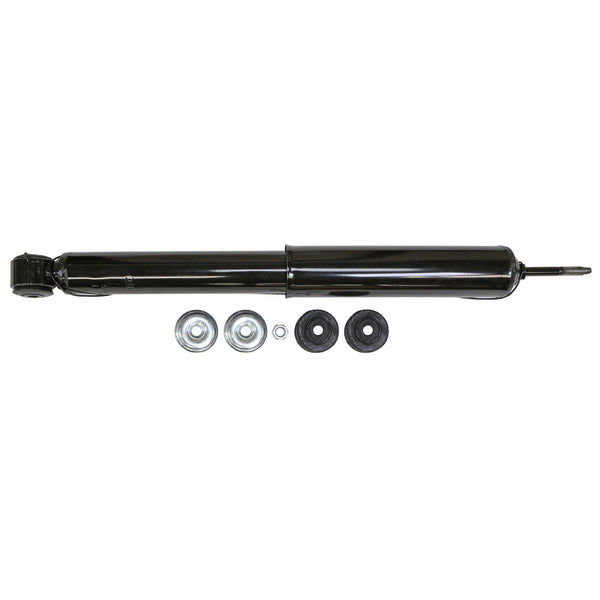

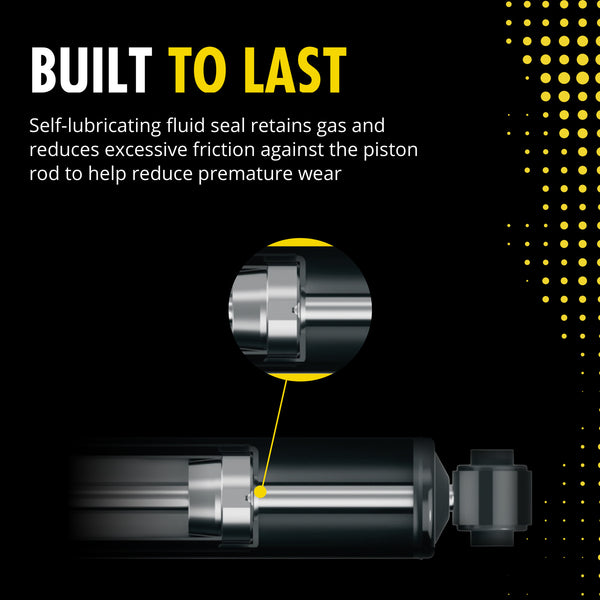

Monroe OESpectrum Shock Absorber 5566
The Monroe OESpectrum 5566 is a twin-tube low pressure gas unit similar to most units that would be OE on your Toyota Yaris. A good choice for average everyday driving, the Monroe OESpectrum (the product formerly known as Sensatrac) features light valving under most driving conditions. Limited lifetime warranty against manufacturer defect.
Specifications of the 5566:
- Body Diameter (IN): 1.64
- Body Diameter (MM): 41.7
- Compressed Length (IN): 18.65
- Compressed Length (MM): 473.7
- Dust Shield Included: Yes
- Dust Shield Material : Metal
- Extended Length (IN): 23.57
- Extended Length (MM): 598.7
- Gas Charged: Yes
- Hydraulic Lockout: No
- Includes Bump Stop: Yes
- Internal Rebound Bumper: Yes
- Lower Mount Code: LS6
- Lower Mount Type: Loop Bushing and Sleeve Mount - 10MM Sleeve X 1.56" Sleeve OAL
- Part Description: Shock Absorber
- Parts Pack(s): P01136
- Shock Absorber Body End Measuring Point: Center of Loop
- Shock Absorber Rod End Measuring Point: Base of Stem
- Travel Length (IN): 4.92
- Travel Length (MM): 125
- Upper Mount Code: S4
- Upper Mount Type: Stem Length 2.68" X 3/8 - 16 Pitch Thread
-
Fitments
VehiclePositionYearToyota Yaris BaseRearToyota Yaris Base FWDRear -
