Features & Benefits
By constantly introducing design enhancements that extend product life and simplify installation and replacement, MOOG has earned its reputation as the chassis industry's Problem Solver.
FEATURES
- 100% Load tested
- Easy to install
- Provides like-new steering
- Designed to lower stresses for longer service life
- Worn or sagging coil springs can cause premature tire wear due to vehicle misalignment
SPECIFICATIONS
- Bar Diameter - Inches: 0.64
- Bar Diameter - MM: 16.30
- End 1 Type: Squared
- End 2 Type: Pigtail
- Free Height - Inches: 13.00
- Free Height - MM: 330.20
- Installation Height (mm): 222.30
- Front Spring Outside Diameter (in): 6.610
- Front Spring Relaxed Length (in): 13.00
- ID - Inches: 5.33
- ID - MM: 135.40
- Installation Height - Inches: 8.75
- Installation Height - MM: 222.30
- Load - lbs: 870.00

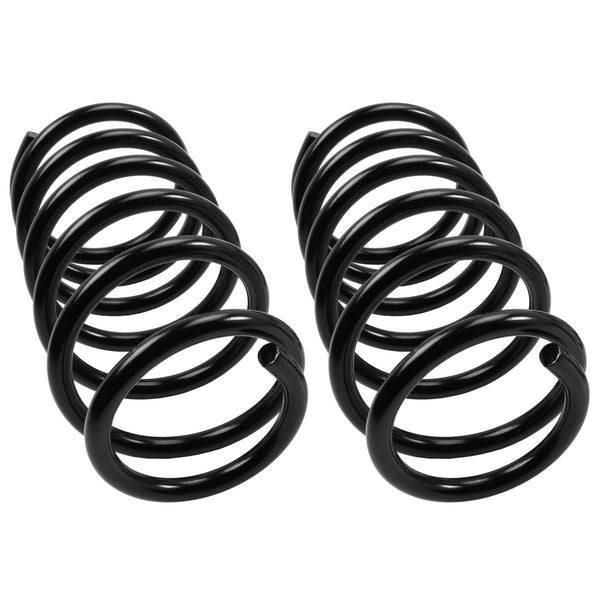

- Part Description: Coil Spring Set
- Rear Spring Compressed Length (in): 8.75
- Rear Spring Outside Diameter (in): 6.610
- Rear Spring Relaxed Length (in): 13.00
- Spring Color: Black
- Spring Rate - lbs per inch: 211.00
- Spring Type: Variable Rate
- Bar Diameter (mm): 16.30
-
