Features & Benefits
By constantly introducing design enhancements that extend product life and simplify installation and replacement, MOOG has earned its reputation as the chassis industry's Problem Solver.
FEATURES
- 100% Load tested
- Easy to install
- Provides like-new steering
- Designed to lower stresses for longer service life
- Worn or sagging coil springs can cause premature tire wear due to vehicle misalignment
SPECIFICATIONS
- Bar Diameter - Inches: 0.781
- End 1 Type: Pigtail
- End 2 Type: Pigtail
- Free Height - Inches: 16.208
- Installation Height (in): 6.784
- Front Spring Outside Diameter (in): 5.540
- Front Spring Relaxed Length (in): 16.208
- Installation Height - Inches: 6.784

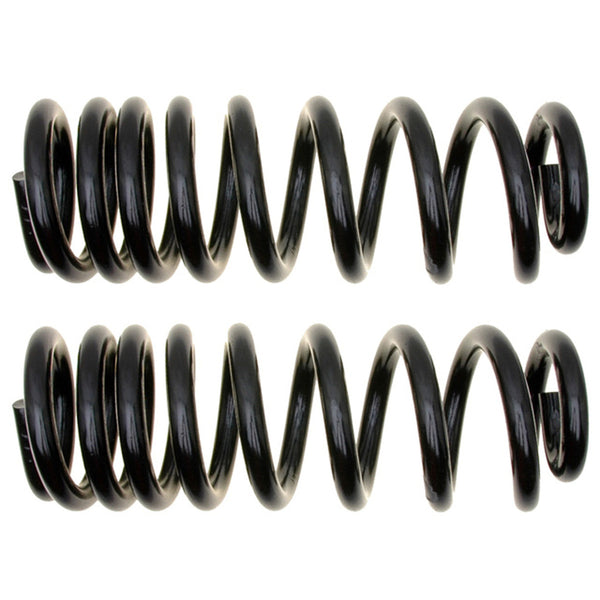

- Part Description: Coil Spring Set
- Rear Spring Compressed Length (in): 6.784
- Rear Spring Outside Diameter (in): 5.540
- Rear Spring Relaxed Length (in): 16.208
- Spring Color: Black
- Spring Type: Variable Rate
- Bar Diameter (in): 0.781
-
