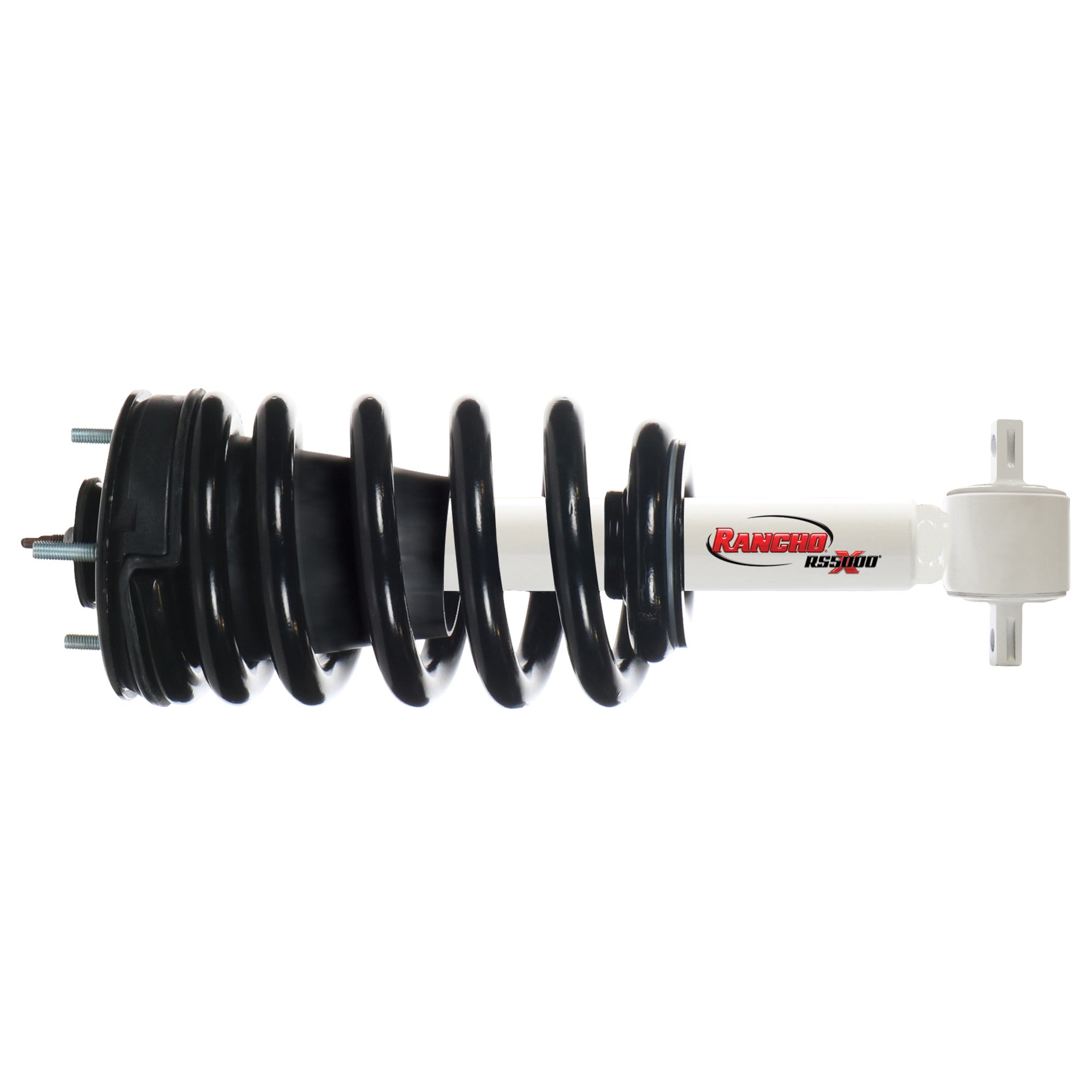

Rancho RS551836R Front Right RS5000X Loaded Strut Assembly Ford F-150

$205.39 USD

In Stock
FREE shipping over $95

SKU: RS551836R

Features & Benefits
An all-in-one solution for late model trucks and SUVs, a Rancho® RS5000®X Loaded strut assembly restores the factory ride height and delivers improved on- and off-road handling thanks to Ranchoâs exclusive Cross Tuned technology. This complete strut assembly simplifies installation by including all the required components in a single unit, on- and off-road ride tested and engineered to strict durability requirements.
FEATURES

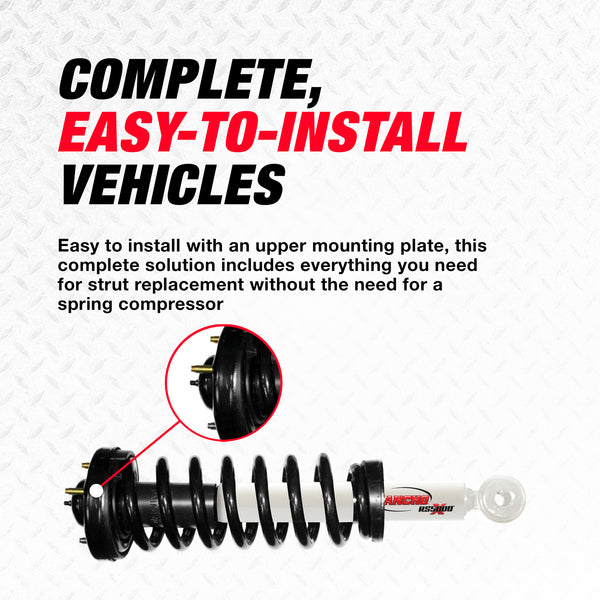

- COMPLETE, EASY-TO-INSTALL SOLUTION -- Easy to install with an upper mounting plate, this complete solution includes everything you need for strut replacement without the need for a spring compressor

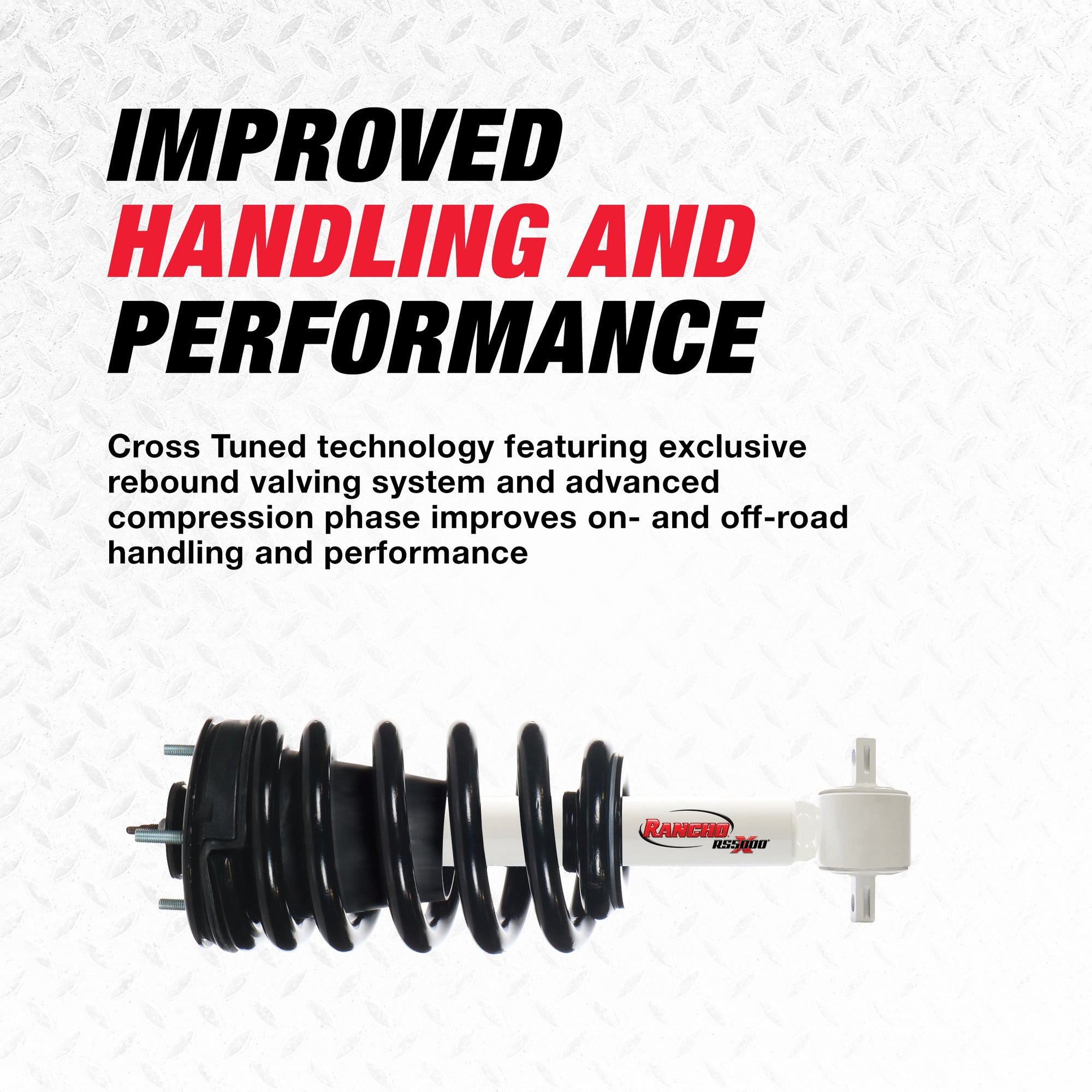

- IMPROVED HANDLING AND PERFORMANCE -- Cross Tuned technology featuring exclusive rebound valving system and advanced compression phase improves on- and off-road handling and performance
- RESTORES RIDE HEIGHT -- Precisely calibrated, each application-specific coil spring is fit checked, ride tested and engineered to restore factory ride height
- MINIMIZES ROUGH RIDE -- Exclusive Progressive Engagement Valving is custom-tuned for each vehicle to help reduce initial impacts at low speeds and minimizes a rough ride

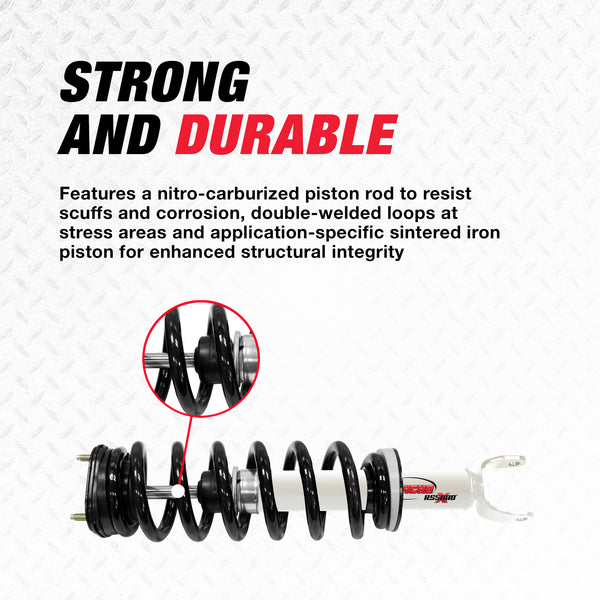

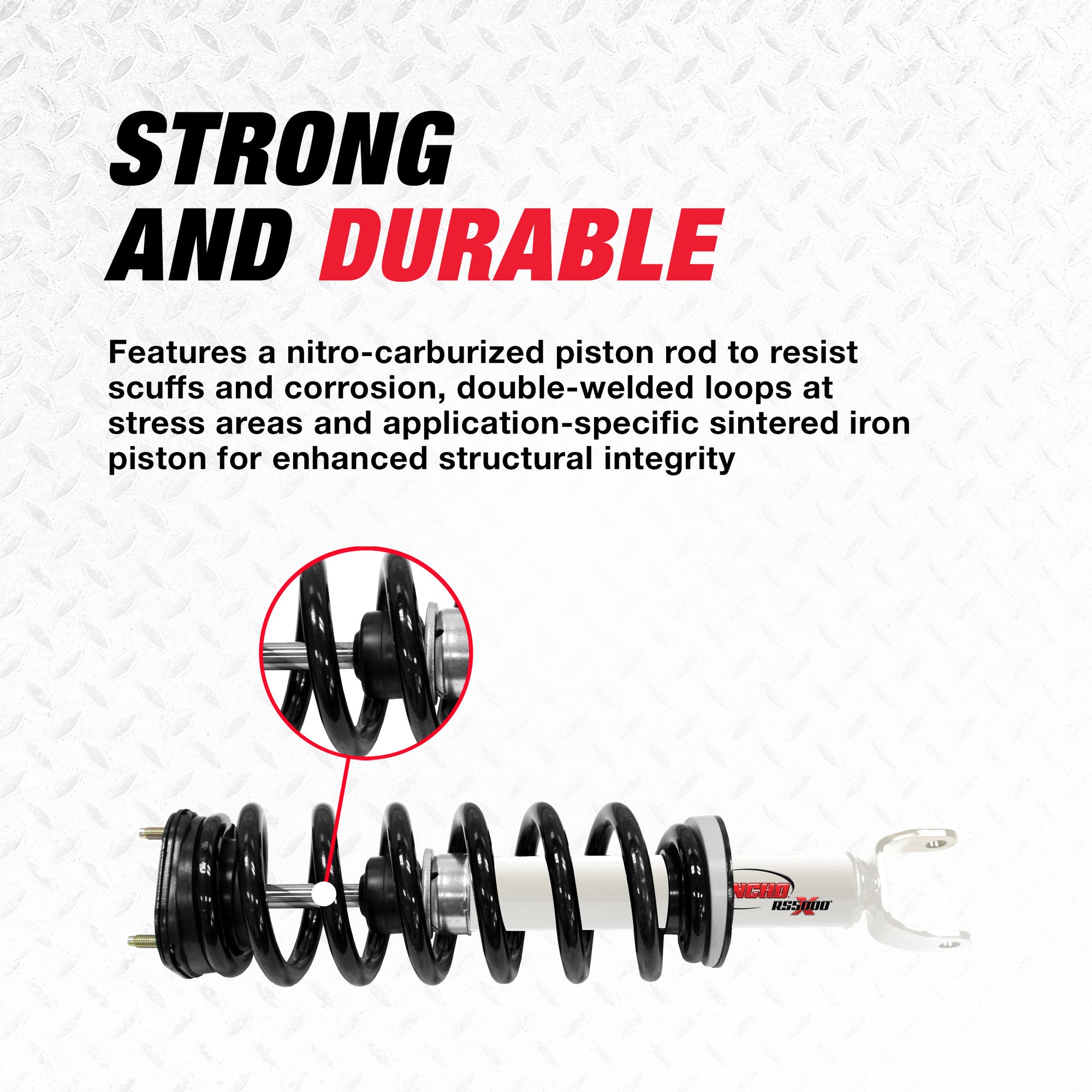

- STRONG AND DURABLE -- Features a nitro-carburized piston rod to resist scuffs and corrosion, double-welded loops at stress areas and application-specific sintered iron piston for enhanced structural integrity

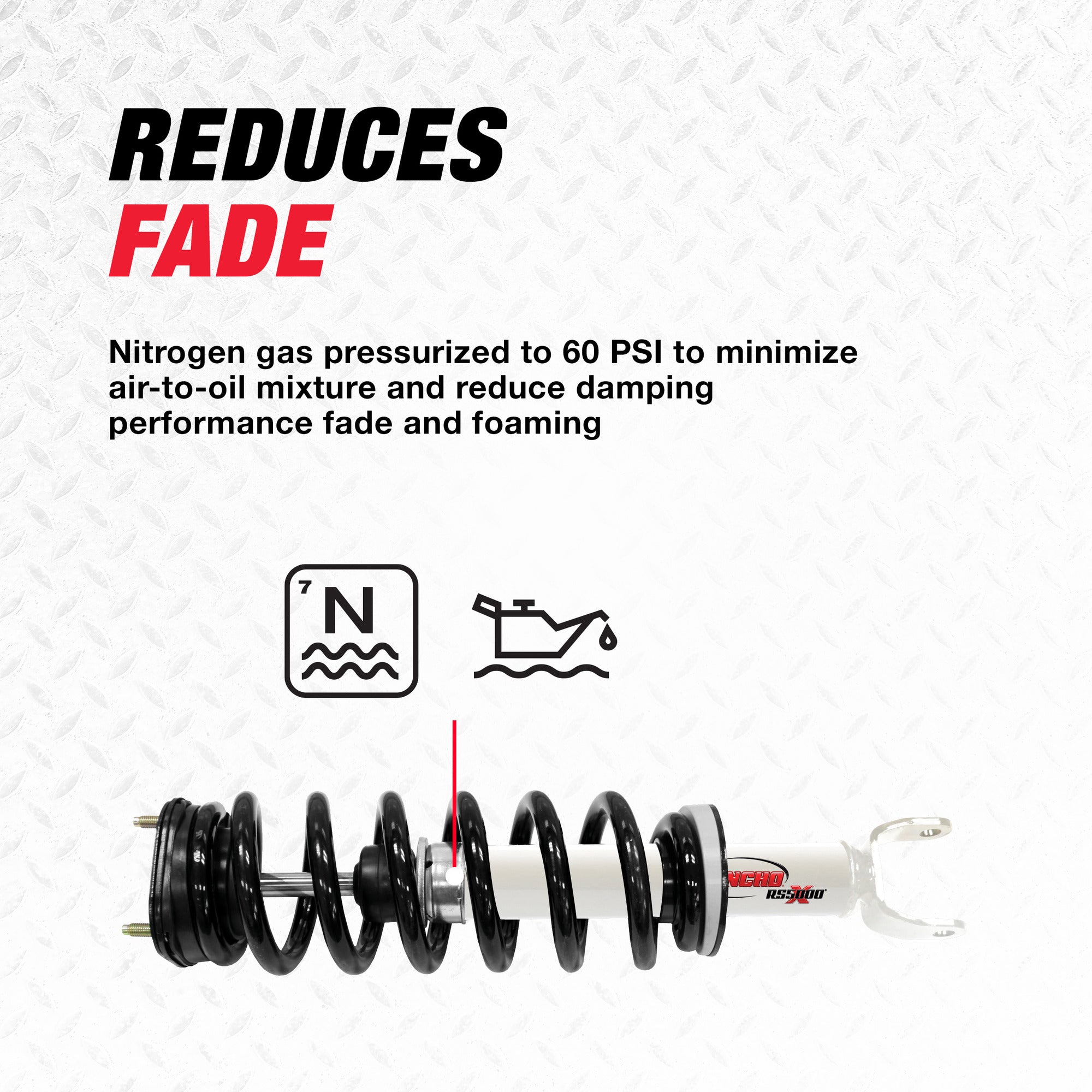

- REDUCES FADE -- Nitrogen gas pressurized to 60 PSI to minimize air-to-oil mixture and reduce damping performance fade and foaming
- BUY WITH CONFIDENCE -- Comes with Ranchoâs Limited Lifetime Warranty
SPECIFICATIONS
- Compressed Length (in): 17.17
- Compressed Length (mm): 436.1
- Extended Length (in): 21.64
- Extended Length (mm): 549.7
- Travel Length (in): 4.47
- Travel Length (mm): 113.5
- Body Diameter (in): 2.13
- Body Diameter (mm): 54.1
- Body Length (in): 17.03
- Body Length (mm): 432.6
- Lower Mount Type: Cross Pin
- Upper Mount Type: Stud Plate Mount
- 8703: No
- Gas Charged: Yes
- Mounting Hardware Included: Yes
- Adjustable Damping: No
- Parts Pack(s): P01141, P01726
- Includes Bump Stop: Yes
- Body Type: SS7
- Internal Rebound Bumper: Yes
Fitments

Vehicle
Position
Notes
Year
Ford F-150 King Ranch 4WD
Front Right
with Front Raised Height 0 (in)
Ford F-150 Lariat 4WD
Front Right
with Front Raised Height 0 (in)
Ford F-150 Limited 4WD
Front Right
with Front Raised Height 0
Ford F-150 Platinum 4WD
Front Right
with Front Raised Height 0 (in)
Ford F-150 XL 4WD
Front Right
with Front Raised Height 0 (in)
Ford F-150 XLT 4WD
Front Right
with Front Raised Height 0 (in)
