Features & Benefits
Application tuned for precision on-road and off-road handling, Rancho® RS7MT® monotube struts are highly effective in the dissipation of heat, making them ideal for extreme off-road use and larger wheel and tire packages. RS7MT struts feature an integrated dirt wiper sealing system that keeps dirt and debris out, hardened piston rod that resists scuffs and corrosion plus an internal rebound bumper to smooth out your ride on any terrain.
FEATURES

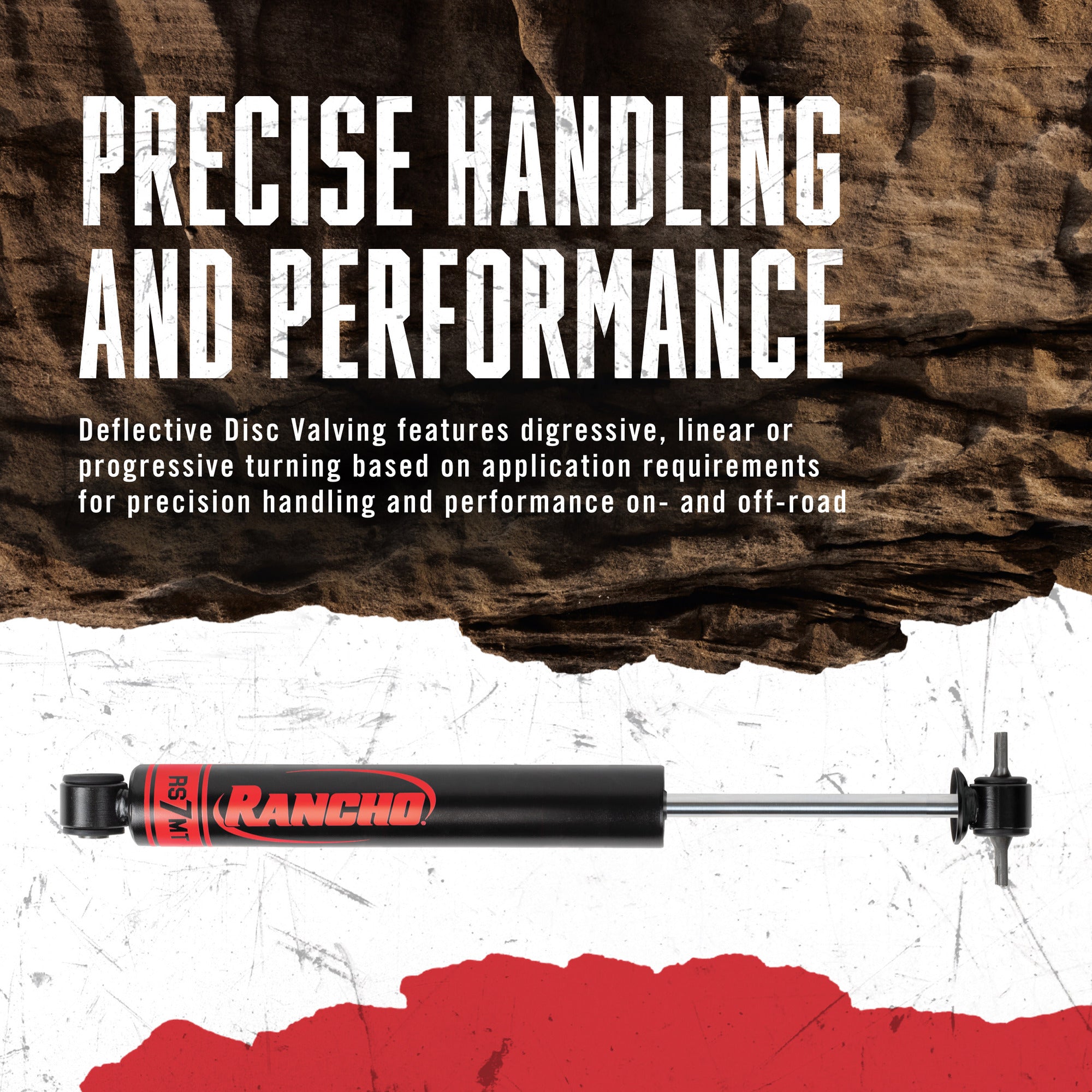

- PRECISE HANDLING AND PERFORMANCE -- Deflective Disc Valving features digressive, linear or progressive turning based on application requirements for precision handling and performance on- and off-road

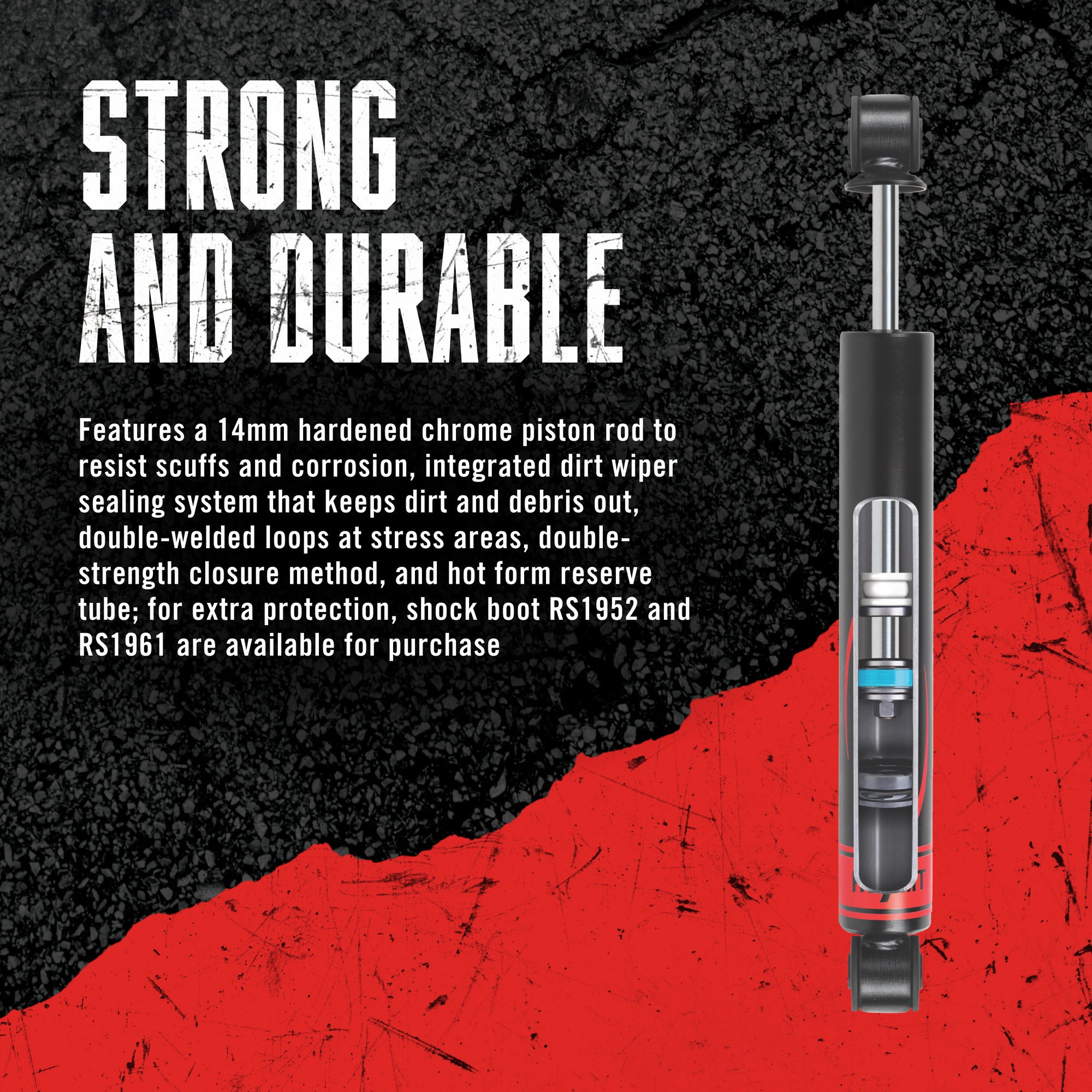

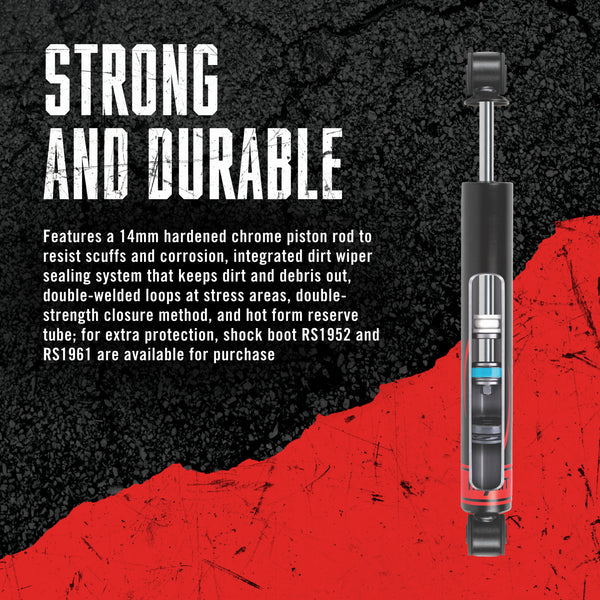

- STRONG AND DURABLE -- Features a 14mm hardened chrome piston rod to resist scuffs & corrosion, double-welded loops at stress areas, double strength closure method and hot form reserve tube

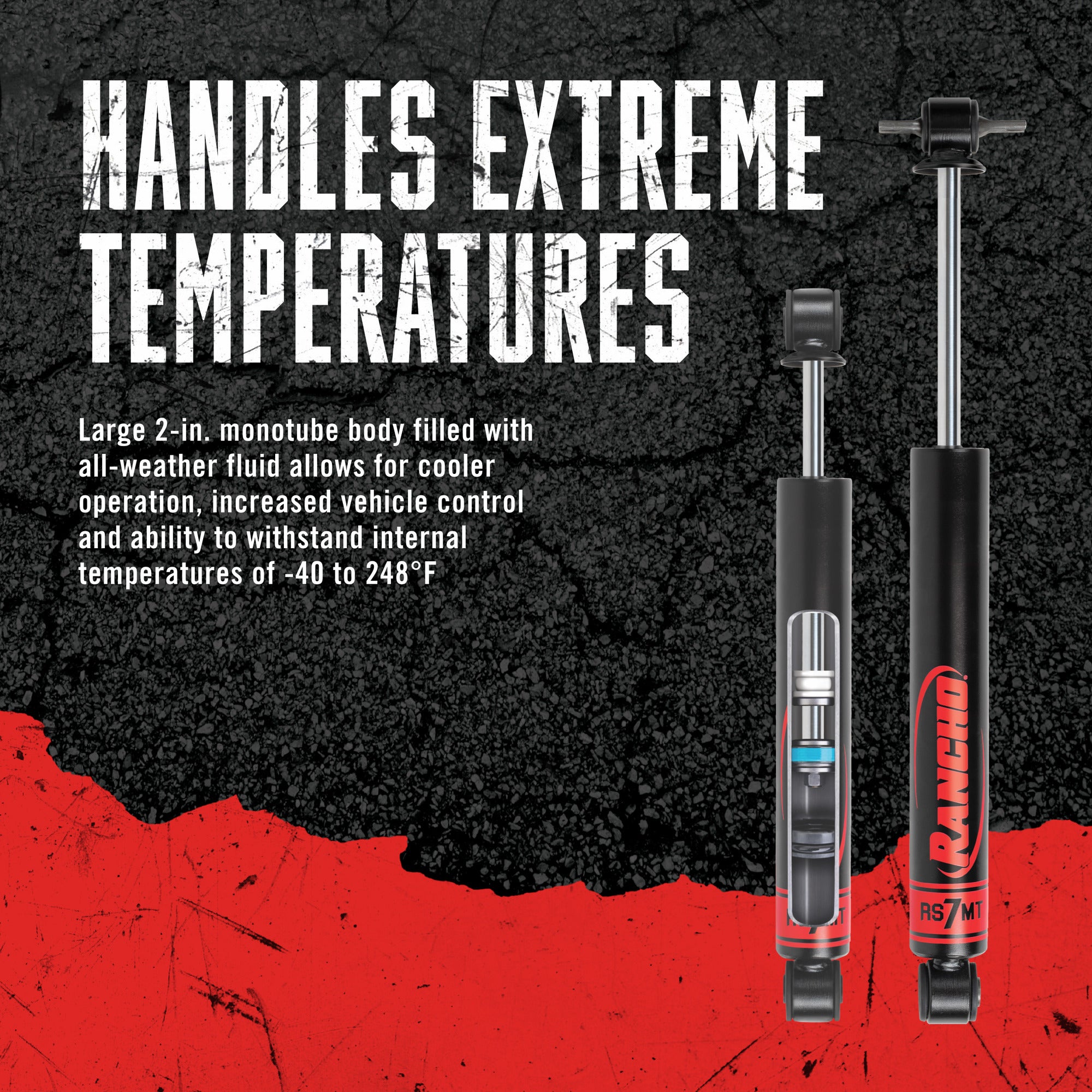

- HANDLES EXTREME TEMPERATURE CHANGES -- Large 2-in. monotube body filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248°F
- REDUCES FADE -- Full-floating dividing piston and high-pressure nitrogen gas maintains constant pressure against the hydraulic oil, reducing aeration and fade

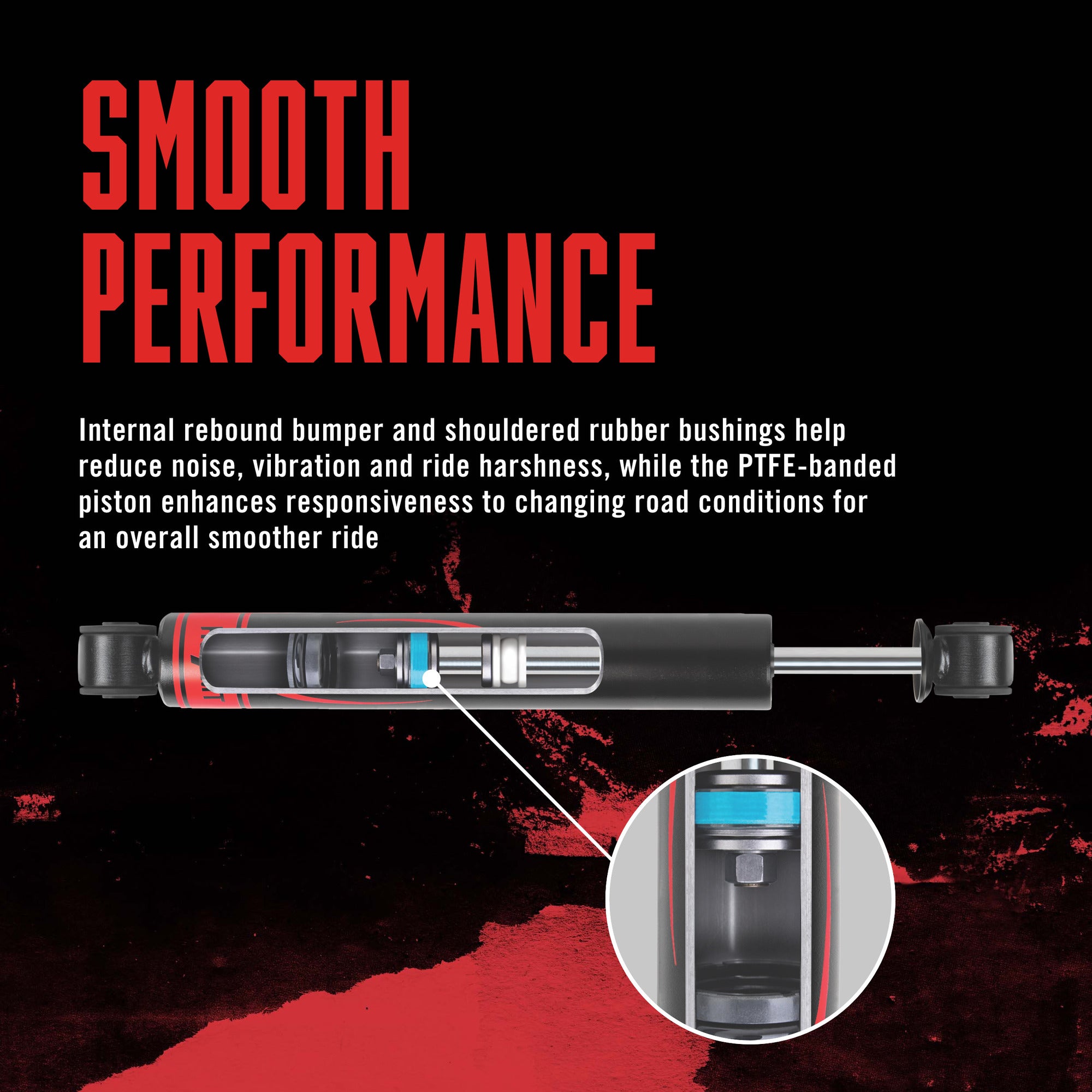

- SMOOTH PERFORMANCE -- Internal rebound bumper and shouldered rubber bushings help reduce noise, vibration and ride harshness while the PTFE-banded piston enhances responsiveness to changing road conditions for an overall smoother ride
- THE RIGHT FIT -- Designed to fit right out of the box, application-specific mounting installs easily with no need for installing sleeves or extra hardware
- KEEPS DIRT AND DEBRIS OUT -- Sealing system with integrated dirt wiper helps keep moisture, dirt and debris from being ingested into the strut and contaminating the oil and destroying the internal seal
- BUILT TO LAST -- Large 46mm fluon-banded piston for consistent sealing between the piston and monotube for precise control, ride and handling
- BOLD APPEARANCE -- Black satin finish with distinctive Rancho red logo for an eye-catching look that stands out
SPECIFICATIONS
- Travel Length (in): 5.71
- Travel Length (mm): 145
- 9908: Yes
- Includes Bump Stop: No
- Gas Charged: Yes
- Adjustable Damping: No
- Body Color: Black
- Finish: Painted
- Parts Pack(s): M17111252
- Rod Diameter (mm): 14
- Shock Absorber Bore Size (mm): 46
- Type: Telescopic
- Grade Type: Performance
- Boot Included: No
- Body Diameter (in): 1.97
- Body Diameter (mm): 50
- Body Length (in): 15
- Body Length (mm): 381
- 104: SS4
- Compressed Length (in): 15.31
- Compressed Length (mm): 388.9
- 8703: No
- Extended Length (in): 21.06
- Extended Length (mm): 534.9
- Internal Construction Type: Single Tube
- Lower Mount Type: Clevis Bracket Mount
- Upper Mount Type: Stem Mount - M12 x 1.75
-
