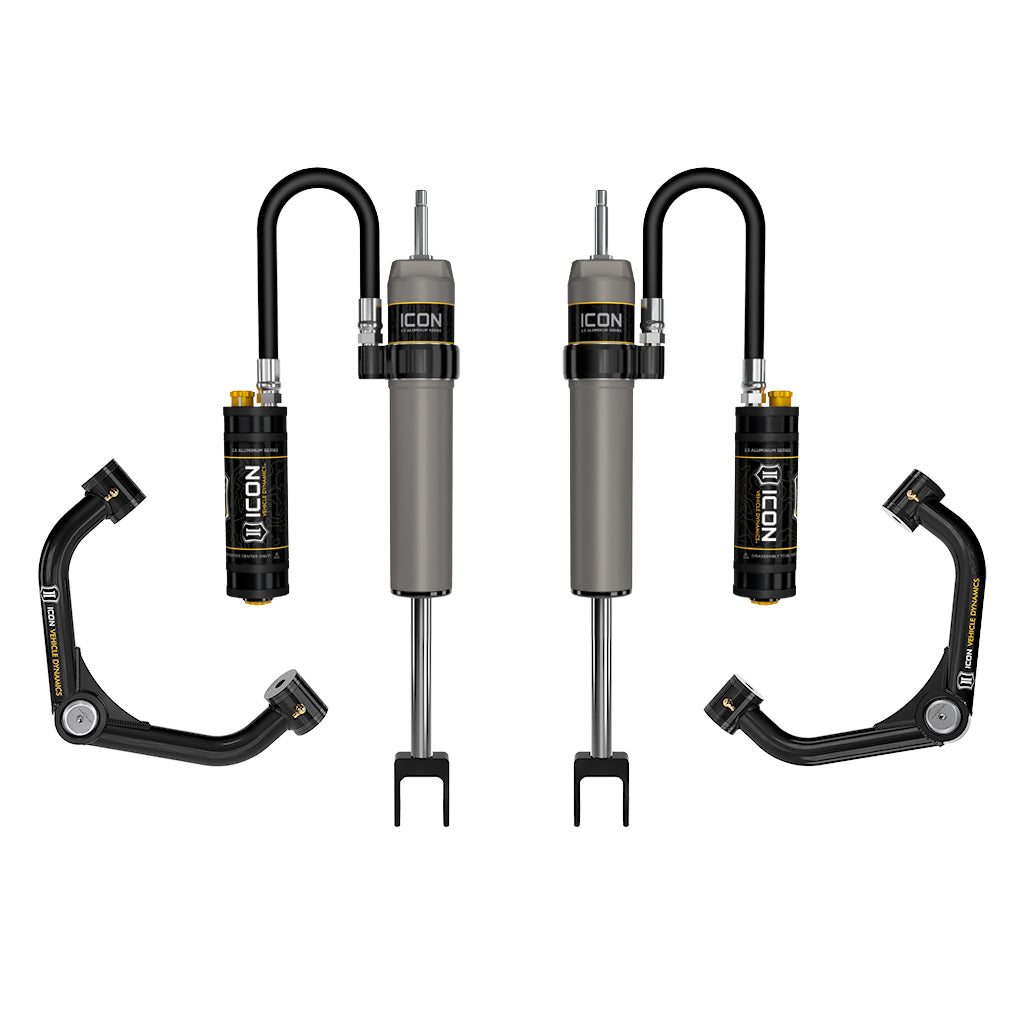

ICON 78725 GM 2500/3500 HD 0-2" Lift 2.5 VS w/CDCV Shock System Tubular UCA
Vendor: ICON
Part: ICON 78725
Availability: Nationwide Backorder (Pre Order to Reserve)
Price: $2,329.95
This item is not available in the USA. You can pre-order and you will be notified when it is available. We will not charge your Credit Card until the items ordered are shipped. We will take an authorization when the order is processed, which may show as a Pending charge for 7 days. You will not lose your place in line. Thank You from Shockwarehouse.
Take the performance of your 2011-2019 GM HD truck to new levels with the ICON Vehicle Dynamics Delta Joint tubular upper control arm kit. All ICON tubular upper control arms are constructed from CNC bent 1026 DOM steel tubing and then powder coated to a semi-gloss black finish for maximum strength and corrosion resistance. ICON upper control arms are engineered with built-in caster correction for optimal alignment specifications and confidence inspiring handling. A main benefit of ICON upper control arms is the increased wheel travel (nearly 50%) when paired with our 2.0 or 2.5 series shock absorbers, this translates into superior performance and ride quality for your 2011-2019 GM HD.
FEATURES
- ICON Delta Joint
- Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- Nitrogen charged monotube design with remote reservoir
- One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 7/8" diameter induction hardened, chrome plated shock shaft
- PTFE lined spherical bearings and application specific mounting hardware
- 6061 aircraft grade aluminum CNC machined components
- CAD plated, precision machined 1026 DOM steel shock body for maximum durability and corrosion resistance
- All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON's Compression Damping Control Valve (CDCV)
- 100% Rebuildable
- 1026 DOM Steel Construction
- 100% Revalveable
- CNC Bent Tubing
- Serviceable Dual Stage Bushings
- CNC Machined Bushing Housings and Sleeves
- Built-In Caster Correction
- Black Semi-Gloss Powder Coat Finish
- ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
- ICON's internal "Bump Zone" increases damping by 20% to provide more control as the shock approaches full compression
SPECIFICATIONS
- Adjustable: No
- Ball Joint Included: Yes
- Ball Joint Mounting Type: Press In
- Ball Joint Stud Type: Threaded
- Bushing Color: Black
- Bushing Material: Polyurethane
- Bushings Included: Yes
- Color: Black
- Control Arm Color: Black
- Control Arm Construction: Tubular
- Control Arm Material: Steel
- Finish: Powdercoated
- Grade Type: Performance
- Grease Fitting Included: yes
- Mounting Hardware Included: Yes
- OEM Wheels & Tires Fitment: Yes
- Pre-Greased: No
- Service Parts: 257337 - 7/8 SHAFT 11.25 OAL, 7.00 TRAVEL
- Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
- Service Parts: 614521 - 78500 BUSHING AND SLEEVE KIT MFG AFTER 8/2015
- Service Parts: 614519 - DELTA JOINT INSTALL PRESS ADAPTER TUBE
- Suspension Grade Type: Performance
TECH NOTES
- Factory Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5.5" Backspace / 12mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.5" Backspace / 12mm Offset
CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
